J2400-30 Fly Away Axle Jacks | Jackson Aircraft Weighing System

J2400-30 Fly Away Aircraft Axle Jacks

Manufactured by Jackson Aircraft Weighing System | The Industry's Trusted OEM

Precision Engineering for Aviation Safety

Stop compromising with generic industrial standards. Our J2400-30 30,000 lb two-stage Gen I flyaway axle jacks are engineered in-house by Jackson Aircraft Weighing System to strict under axle specifications. Designed for rapid deployment and precise under-axle weight and balance operations, these jacks are the definitive choice for MROs worldwide.

Core Technical Specifications:

Capacity: 30,000 lbs (per jack)
Design: Two-Stage Gen I Flyaway Axle Jack
Aviation Compliance: Adheres strictly to aviation specifications for jack points and cups
Compatibility: Integrates seamlessly with our custom Weighing Console GUI for real-time UAWS data monitoring

Contact our Riviera Beach facility (Cage Code 1YXM4) for OEM direct pricing, official quotes, and dealer inquiries. sales@aircraftscales.com

Request Official Quotation

561-

We are now producing the replacement for those expensive Fly Away Jacks

Small jacks and larger jacks are used under axle for maintenance, commonly call Fly Away Jacks. They can be used in the hangar and on the ramp at the gate for tire changes and other requirements for maintenance. Some are small can can "Fly Away" with the aircraft, the jacks we produce are for hangar and gate usage.

Below is our J2400-30 jack, this jack can be used for weighing and for maintenance. Fly away maintenance jacks are used for tire changes and brake changes and are air operated.
Our J2400 series of jacks are easy to locate to the aircraft, no longer do you have to carry and or use a wheel unit for transport, just adjust the handle and roll the jack to your aircraft.

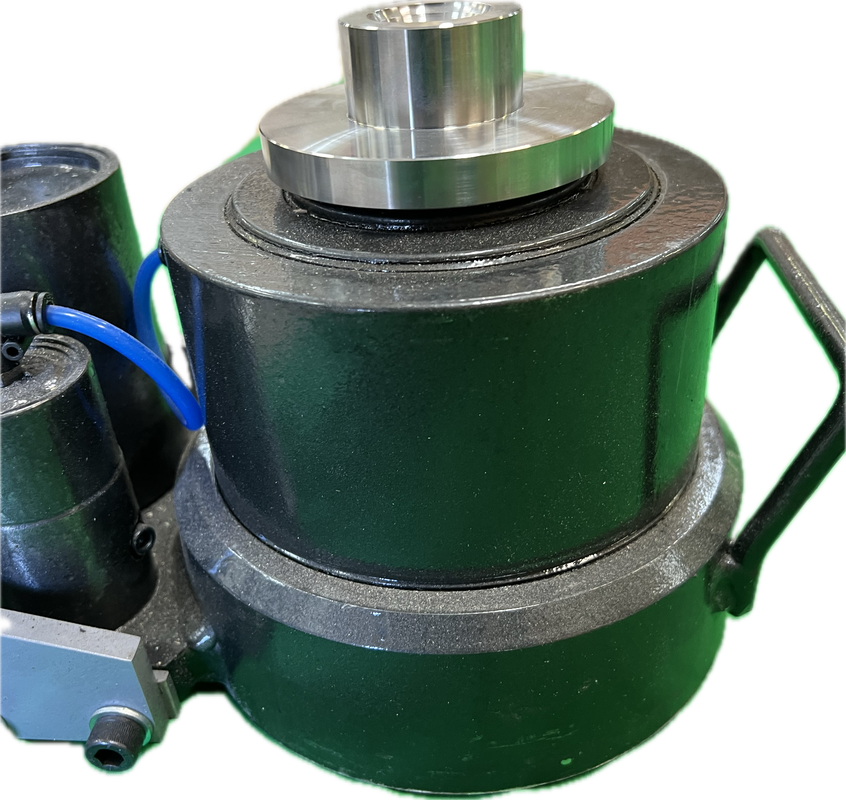

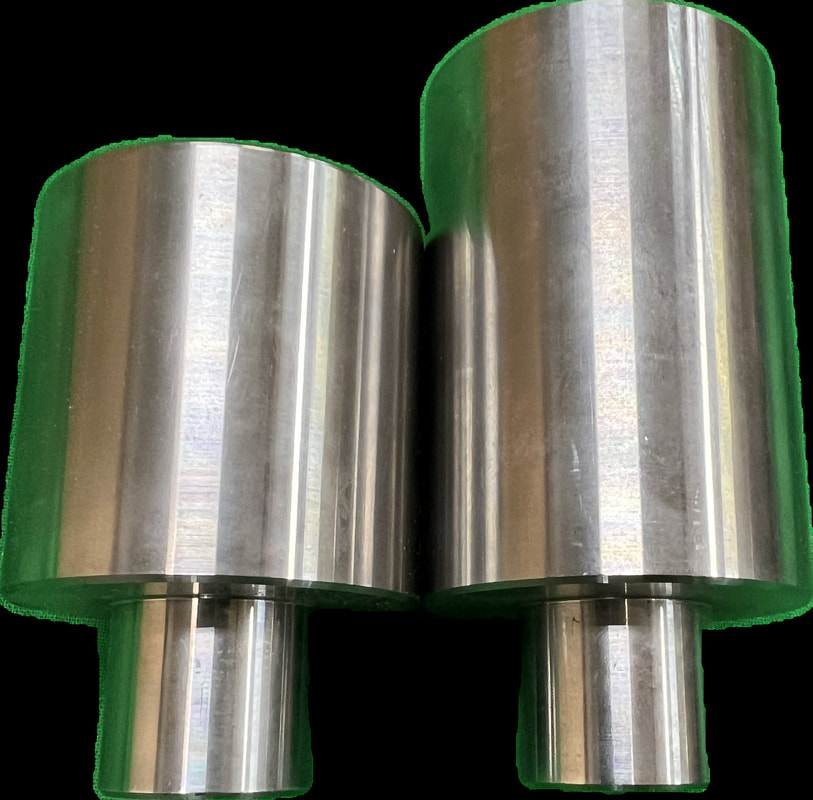

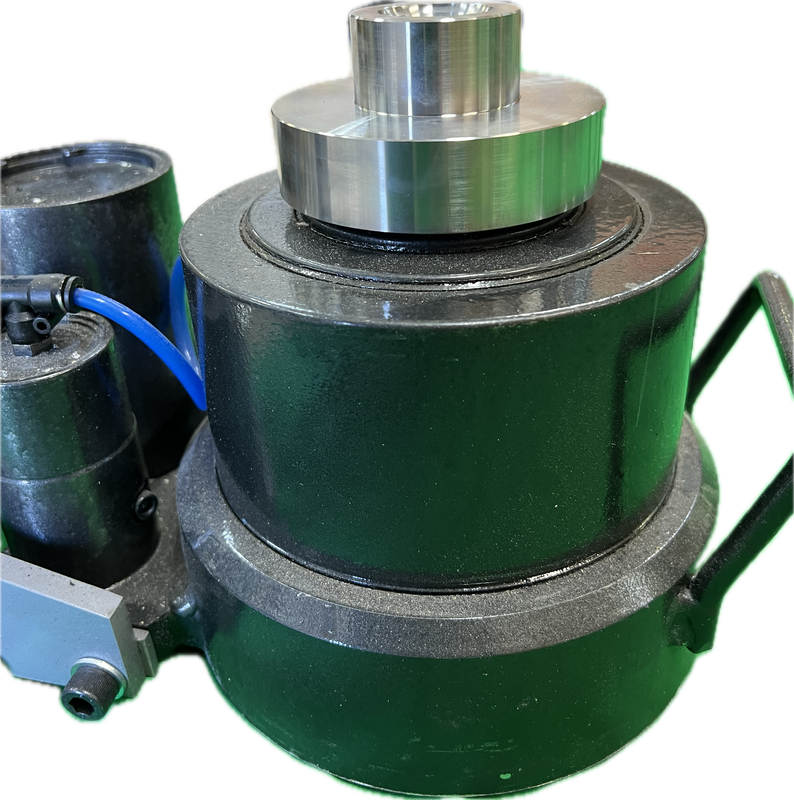

Above is our maintenance adapter package for the J2400-30 series, these adapters allow you to adjust your height for tire wear and quicker jacking. Maintenance adapters are made CNC from 17-4 stainless for high quality and long life. MA Series adapters

Our J2400-30 series jacks can be used for UAWS Under Axle Weighing System as well as maintenance use, these jacks are made in West Palm Beach, FL and are a direct replacement for the small yellow and blue hand carry maintenance jacks.

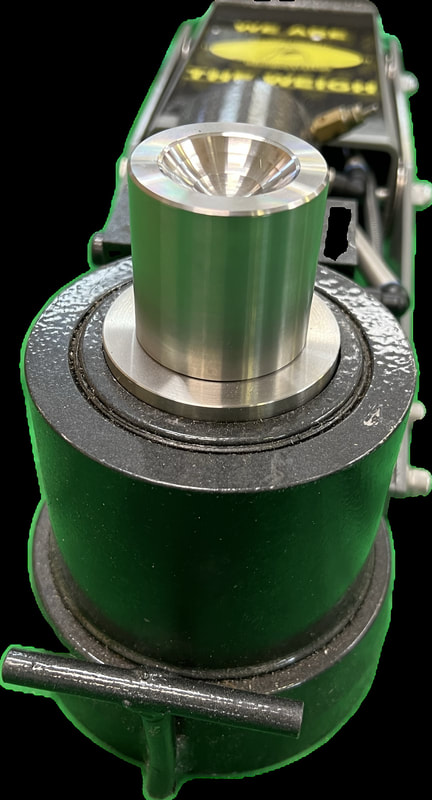

J2400-30T jack with our MA 2.0 2 inch lift adapter. The adapter allows for fit and accounts for tire wear.

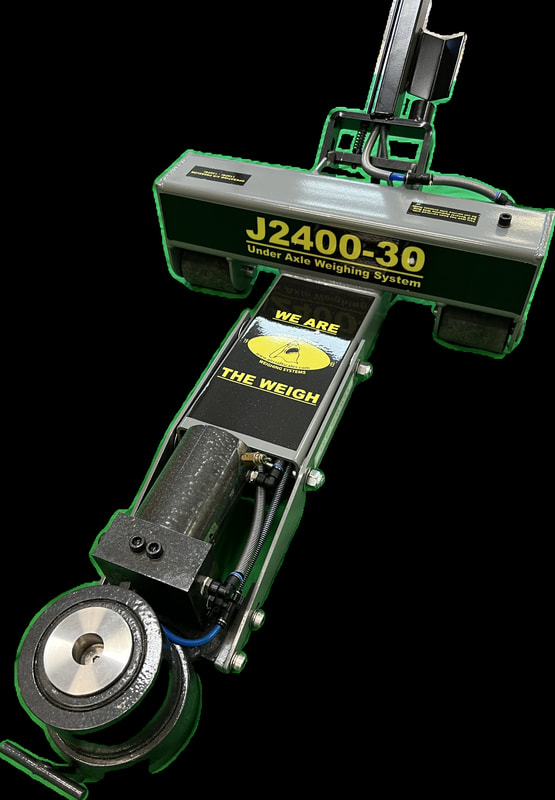

Above is our J2400-30 jack assembly, easy roll wheels, adjustable handle, air over hydraulic operation, internal air locking, power lowering using air, great for weighing and maintenance use. Check out our larger versions 80T and 100T for large jet maintenance.

The jacks are easy to roll in-between the aircraft main and nose wheels. Easy lifting soft stroke technology allows for a soft lift without the hammering effects of our competitors jacks. Save time and money with our jacks.

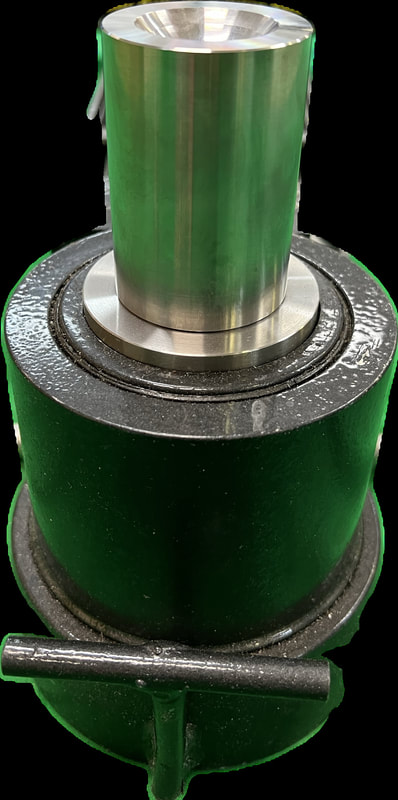

J2400-30T jack with our MA 3.0 3 inch lift adapter. The adapter allows for fit and is used for higher axle jack points.

Above is our Fly Away J2400-100T maintenance jack, this jack can be used under axle to lift many large jets for tire changes at the gate or in the hangar. Available in a 30T, 80T, and 100T load rating.

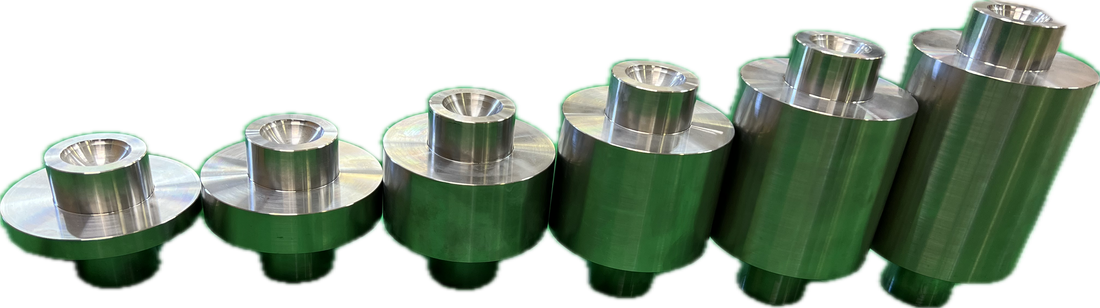

We manufacture our MA series of Maintenance adapters from 17-4 stainless steel, CNC cut for a perfect fit to your under axle jack points. Our Fly Away jacks are made for easy use and designed to roll up to the aircraft. Don't hand carry those yellow or blue heavy jacks for a tire change, just roll up and under the axles and use our adapters to fill the gap. New tires, worn tires, flat tires, we can fit under most heavy jet axle jacking points.
